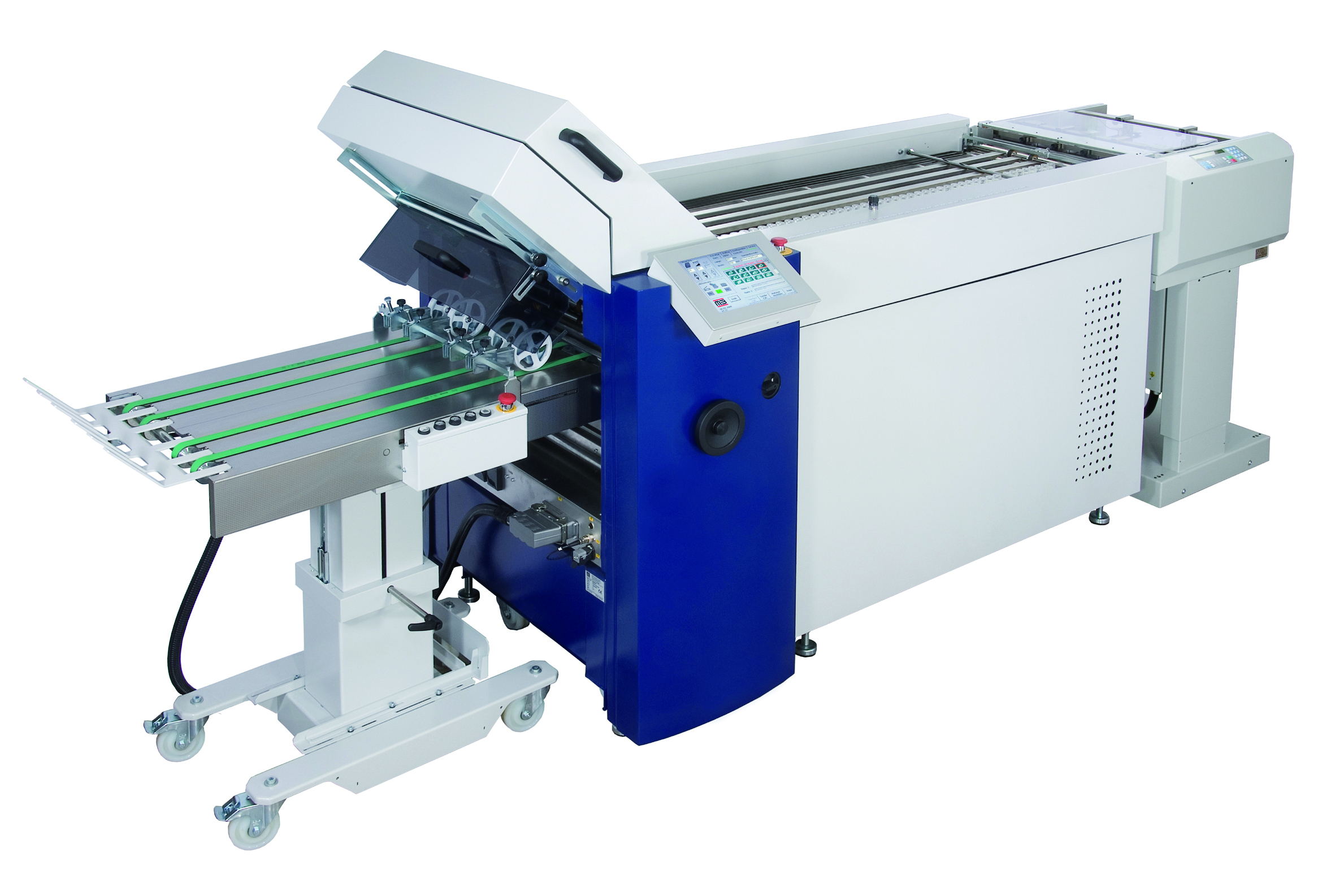

MB PrestigeFOLD NET 52



Intelligent machine control and touch-screen operation simplify the folding process. The central touch-screen panel is the interactive operator interface where all important settings are made. Manual interference is reduced to a minimum. The operator guidance is self-explanatory and organized analogous to a conventional card file. The operator knows at any time which menu is active and which options are still available. prestigeFOLD is already prepared for the future, because an interface allows integration into in-plant networks. This is the basis for transfer of data to the machine by means of a JDF-file or for production data acquisition.

Automatic from feeder to delivery

The automatic set-up system controls all settings of the machine from feeder to delivery. Starting with the unfolded sheet size, the chosen type of fold and the paper thickness measured by the paper thickness sensor, the computer control calculates the positions of the various setting elements and adjusts them accordingly.

Form Processing

The basic fold unit prestigeFOLD NET is capable of producing all types of parallel folds. A second fold unit is needed for producing crossfolds.

For especially high demands on the processing variability, model prestigeFOLD NET SL is available as a second fold unit. It can also be used as a stand-alone machine, because it is equipped with its own drive and control panel.
This feature allows using the fold unit within a folding system in conjunction with other fold units or as a stand-alone unit. A large variety of applications is therefore possible.

  • Fully automatic machine set-up
  • Sturdy Construction
  • High degree of adaptability
  • Networking Capability
  • Modern Industrial Design



Paper Sizes

NET 38:

max: 38 x 65 cm (14 15/16" x 25 9/16")(PBA)

min: 7 x 12 cm (2 3/4" x 4 11/16")(PBA)



max: 38 x 75 cm (14 15/16" x 29 17/31") (FSA)

min: 10 x 12 cm (3 15/16" x 4 11/16")(FSA)

NET 52:

max: 52 x 85 cm (20 7/16" x 33 7/16")

min: 10 x 12 cm (3 15/16"x 4 11/16")

Fold Length:

min: 3.5m (1 3/8")

Paper Weight:

40 to 250 GSM (1.3lb. bond to 90lb. cover) (for single parallel fold)

Speed:

max: 220 m/min (721.6 ft/min)(depending on paper quality)

Electrical:

  • Voltage 3 x 400 V / 50 hz / N / PECurrent consuption max. 10 A
  • Voltage 3 x 208 V / 60 Hz / PE Current consumption max. 16A

For continuous forms:

  • Foldunits: Automatic setting of alignment rails, fold plate stops, deflectors, and fold rollers
  • Delivery: Automatic settings of hold-down rollers
  • Commands are enteredat the central touch screen operator panel
  • 20 Standard folds are pre-programmed
  • Individual programming of other folds
  • More than 200 jobs can be saved in the memory
  • Paper thickness is determined by means of the paper thickness sensor
  • CIP4-compatibility

Benefits

  • Simple handling
  • Short set-up times
  • Minimum waste

Specifications

Paper Sizes       Length                                                      Width

DAT 24                Max.                          Min.                         Max.                         Min.

one-up                 610 mm (24")          100mm (4")            520mm (20")          100mm (4")

two-up                 610 mm (24")          100mm (4")            230mm (9")             120mm (4 11/16")

art 52

one-up                 1320mm (52")        100mm (4")            520mm (20")           100mm(4")

Fold length: min. 3.5 (1 3/8")

Paper weight: 40 to 250 GSM (13 lb. bond to 90 lb. cover) for singleparallel fold

Speed max: Up to 220 m/min (721.6 ft/min)(depending on paper quality)

Electrical

Voltage:

  • 3 x 400 V / 50 Hz / N / PE
  • 3 x 208 V / 60 Hz / PE

Current Consumption: 10 A

Power Consumption: prestigeFold NET 52/6 with DAT or ART : .9kW (900W)

Delivery Am 52: .1kW (100W)

Weight(net):

prestigeFOLD NET 52 with DAT: 460 kg (1014 lbs.)

presigeFOLD NET 52 ART: 550kg (1213 lbs.)

Delivery AM 52: 80 kg (176 lbs.)

Optional Equipment:

  • Mobile knife fold unit MS 45
  • Additonal fold unit KF 31
  • Cutting device
  • Gate fold plate
  • Pharmaceutial fold unit
  • Gluing device
  • Small format vetical stacker
  • Software module for barcode reading
  • Remote maintenance module
  • Timed perforation
  • Timed cutting
  • Center cut-out device
  • Side trim device
  • Scoring and perforating tools
  • Kicker for delivery
