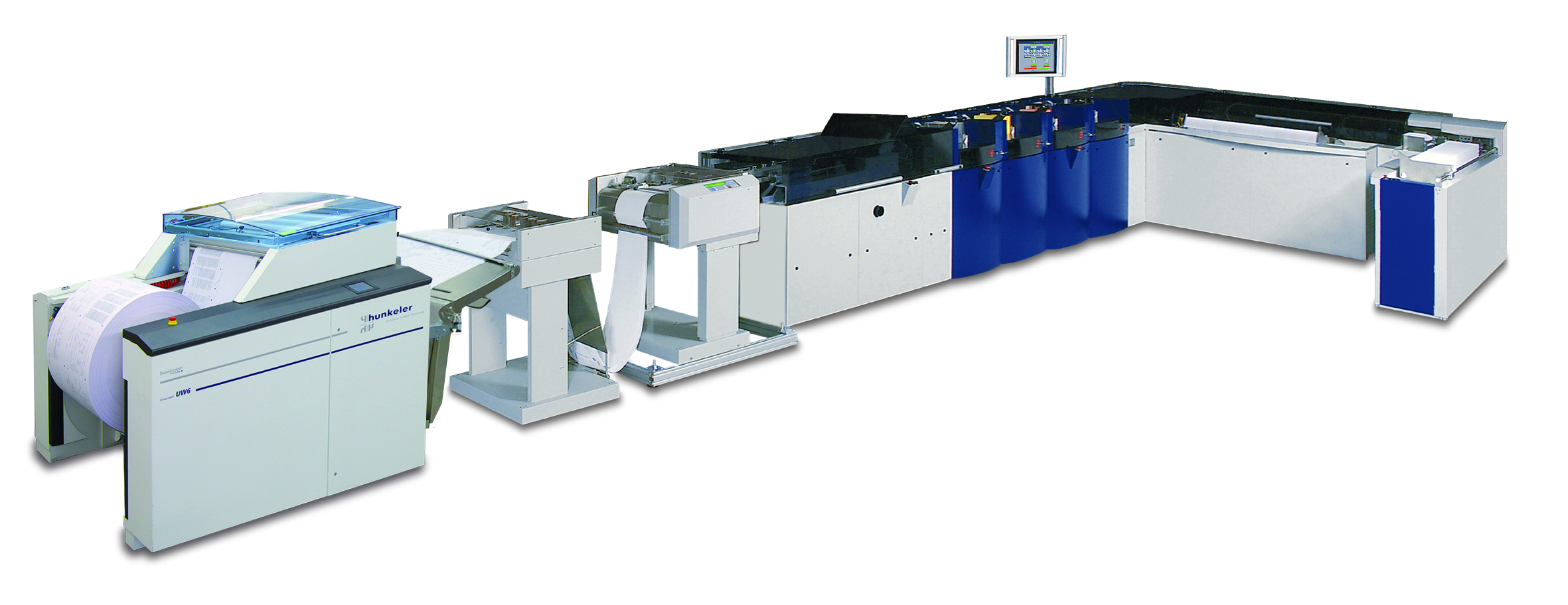

MB AutoSET 18 / XT





AutoSET 18 / AutoSET XT is an inserting system that stays in step with growing demands. Its main characteristics are high productivity, processing security, gentle material transport, modular design, efficient ergonomics of the workplace, flexible high-capacity feeding systems and an intelligent machine control system. A linear flow of documents without change of direction from the feeding system to the enveloping station is optimal for trouble-free operation of the system at high throughput.

Automatic format setting controls the following system modules:

  • Feeding system
  • Accumulator
  • 4 fold-plate fold unit
  • Collector
  • Document track
  • Insert stations
  • Envelope loader
  • Enveloping station
  • Sealing station
  • Diverter
  • On-edge stacker

Benefits

  • Simple Operation
  • Minimum Set-Up Times
  • Operator-friendly system layout
  • Good accessibility
  • High degree of modularity
  • Reduced personal requirement
  • Maximum availability

Optional equipment

  • Loading module for feeding systems
  • Collector after folding
  • Inkjet addressing
  • Integrity control
  • Postage meter modules
  • Kicker for on-edge stacker
  • Conveyor
  • Ink marker
  • Matching
  • Monitoring
  • File-based processing

Specifications

Speed

max: 18,000 cycles/h (autoSET 18)

max: 23,000 cycles/h (autoSET XT)

Envelopes

Sizes:

min. height x width:

105 x 170 mm (4.13" x 6.69")

max. height x width:

170 x 250 mm (6.69" x 9.84")

Envelope weight: 70-120 GSM (18-32 lb. bond)

Loader Capacity: 3,000 envelopes (80 GSM) (20 lb. bond)

Inserts

Sizes:

min. height x width:

60 x 105mm (2.36" x 4.13")

max. height x width:

165 x 228mm (6.49" x 8.97")

Paper weight: 60-200 GSM (16-53 lb. bond)

Loading capacity: 4,000 sheets (80 GSM (20 lb. bond) unfolded)

Thickness: max. 3mm (0.12")

On-edge stacker

Capacity: Belt length 170cm (67") approx. 2,000 envelopes (depending on contents)

Electrical

Voltage: 208-400 VAC 3-Phase

Frequency: 50/60 Hz
